Custom SystemStructure and SymbolicAWESystem

A custom SystemStructure can be used to create models of kite power systems of almost any configuration.

• custom amount of tethers
• custom bridle configurations
• quasi-static or dynamic point masses
• different amounts of stiffness, damping and diameter on different tether segments

Precondition

First, following the Quickstart section up to the installation of the examples. Make sure that at least KiteModels version 0.8 is installed by typing using Pkg; Pkg.status(). To start Julia, either use julia --project, or ./bin/run_julia.

Creating a simple tether

We start by loading the necessary packages and defining settings and parameters.

using KiteModels, VortexStepMethod, ControlPlots

set = se("system_ram.yaml")
set.segments = 20
dynamics_type = DYNAMIC

Then, we define vectors of the system structure types we are going to use. For this simple example we only need points and segments.

points = Point[]
segments = Segment[]

points = push!(points, Point(1, zeros(3), STATIC; wing_idx=0))

The first point we add is a static point. There are four different DynamicsTypes to choose from: STATIC, QUASI_STATIC, DYNAMIC and WING. STATIC just means that the point doesn't move. DYNAMIC is a point modeled with acceleration, while QUASI_STATIC constrains this acceleration to be zero at all times. A WING point is connected to a wing body.

Now we can add DYNAMIC points and connect them to each other with segments. BRIDLE segments don't need to have a tether, because they have a constant unstretched length.

segment_idxs = Int[]
for i in 1:set.segments
    global points, segments
    point_idx = i+1
    pos = [0.0, 0.0, i * set.l_tether / set.segments]
    push!(points, Point(point_idx, pos, dynamics_type; wing_idx=0))
    segment_idx = i
    push!(segments, Segment(segment_idx, (point_idx-1, point_idx), BRIDLE))
    push!(segment_idxs, segment_idx)
end

In order to describe the initial orientation of the structure, we define a Transform(idx, elevation, azimuth, heading) with an elevation (-80 degrees), azimuth and heading, and a base position [0.0, 0.0, 50.0].

transforms = [Transform(1, deg2rad(-80), 0.0, 0.0;
              base_pos = [0.0, 0.0, 50.0], base_point_idx=points[1].idx,
              rot_point_idx=points[end].idx)]

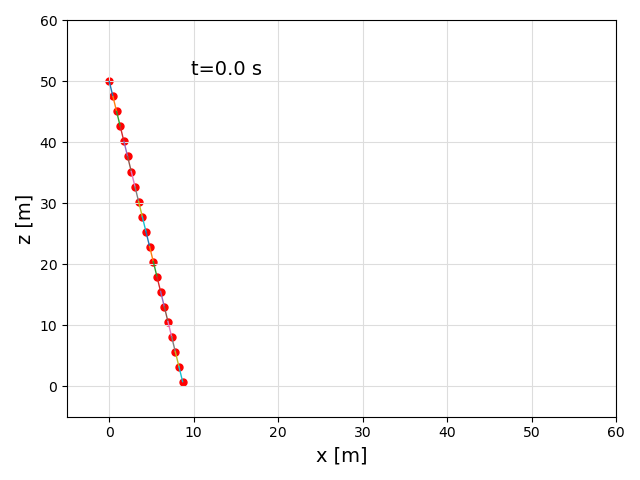

From the points, segments and transform we create a SystemStructure(name, set), which can be plotted in 2d to quickly investigate if the model is correct.

sys_struct = SystemStructure("tether", set; points, segments, transforms)
plot(sys_struct, 0.0)

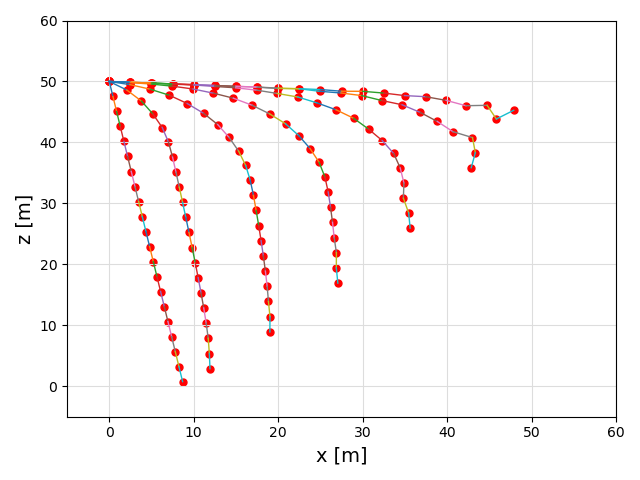

If the system looks good, we can easily model it, by first creating a SymbolicAWEModel, initializing it and stepping through time.

sam = SymbolicAWEModel(set, sys_struct)

init_sim!(sam; remake=false)
for i in 1:80
    plot(sam, i/set.sample_freq)
    next_step!(sam)
end
